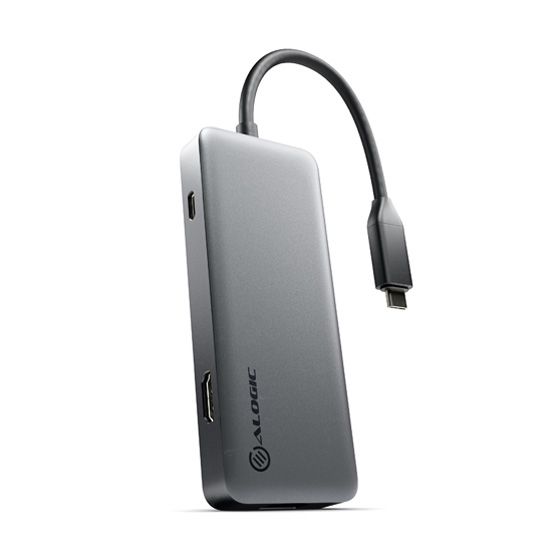

SPARK 6-in-1 USB 4 Hub with 8K HDMI
Based in Canada
14 Days Money Back
Expert Support

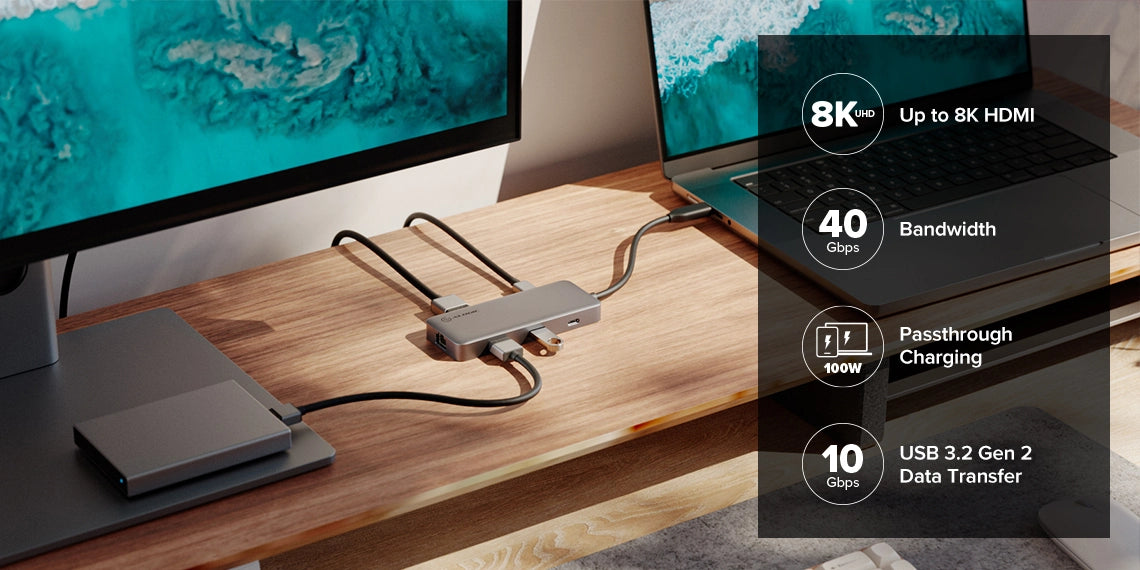

Next Generation USB 4 Performance
Offering twice the bandwidth as the fastest USB 3 connection, with USB4 you’ll never have to compromise on connectivity again. With a breathtaking 40 gigabits per second transfer speed, USB4 capable of moving files at lightning speeds with more than enough capacity left over to support a multitude of devices, including ultra-high-definition displays.
While USB4 represents the cutting-edge standard of data transfer - future-proofing your setup and allowing you to take advantage of new technologies - it remains completely backwards compatible with existing USB 3 or Thunderbolt ports, so you don’t need to have a cutting-edge computer to take advantage of this new technology.
Declutter your desk

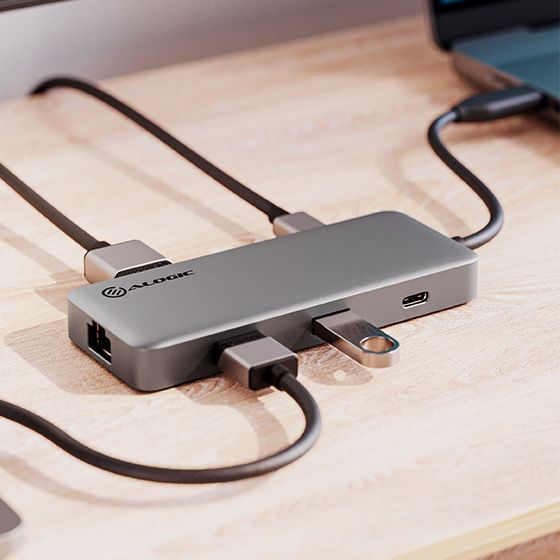

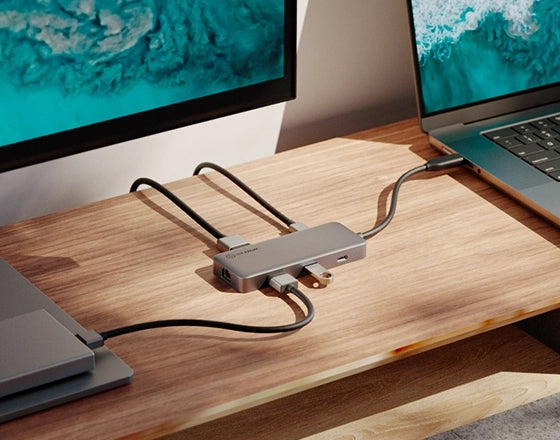

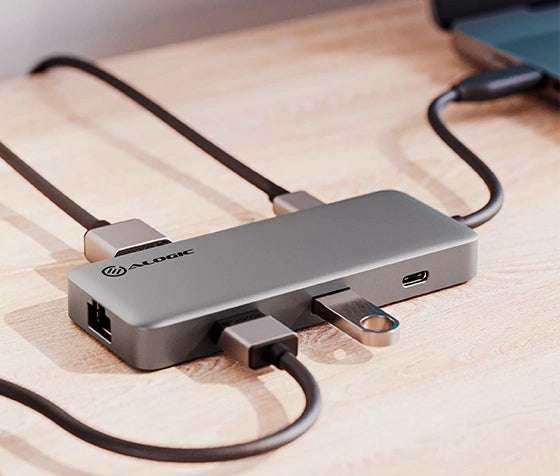

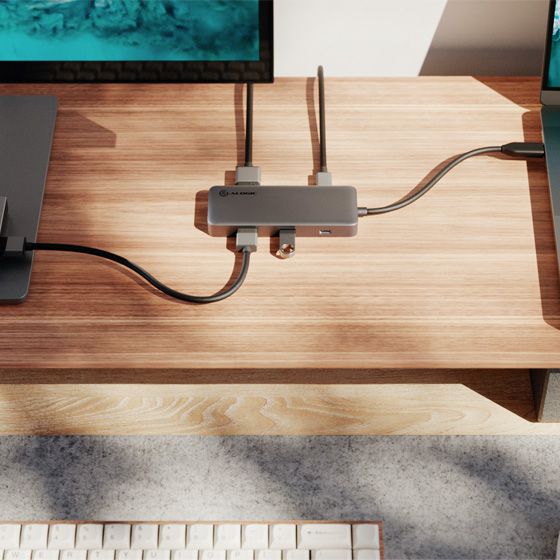

Tired of dealing with a tangle of cables and chargers every time you need to unplug a device? Save yourself the hassle with the robust connectivity of the SPARK 6-in-1 USB4 Hub, which provides the expansion ports you need without the desktop footprint that usually goes with them.

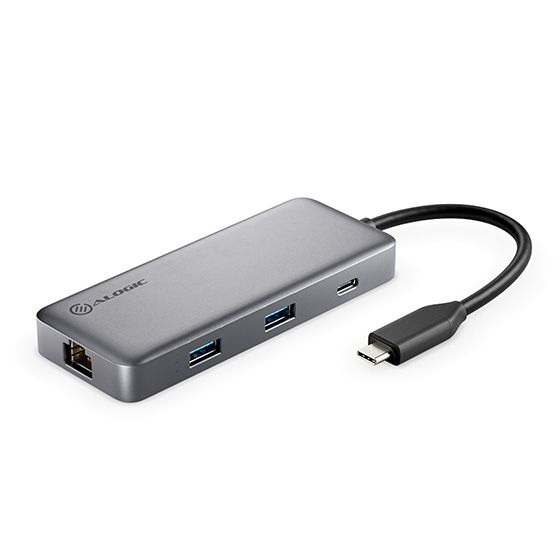

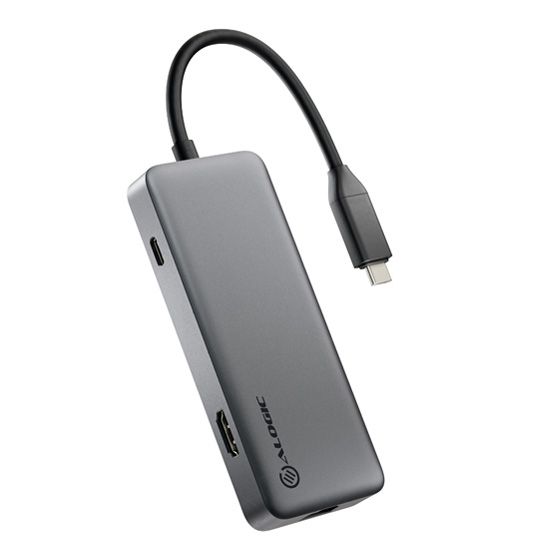

In addition to your USB4 computer connection, the hub’s outputs include 8K HDMI, 10Gbps USB (2x USB-A + 1x USB-C), Gigabit Ethernet and a USB-C PD charging input supporting up to 100W of power, all in a compact box that will complement any setup.
Crystal Clear 8K HDMI Video
Enjoy the crispest video quality available with a HDMI 2.1 connection that supports ultra-high-definition 8K resolutions at a smooth 60Hz*.
Whether you’re multitasking at work, composing your next digital masterpiece, finally catching up on that summer blockbuster or immersing yourself in a virtual world, the SPARK Hub’s ultra-fast USB4 transfer speeds will allow you to make the most of your display, whatever its resolution.
And when you’re ready for that 4K or 8K upgrade? Your ALOGIC SPARK 6-in-1 USB4 Hub will be ready and waiting.
* Video resolutions and refresh rates that can be achieved are dependent on the capabilities of the connected computer and monitor. Check the FAQ’s below for guidance in the resolutions you can expect to achieve with your equipment.
General
For users this means faster data transfers (two or more times faster than previous USB standards) and the ability to support higher video output resolutions.
The USB 4 standard is very new compared with the existing USB 3 standard which was first introduced in 2008. This means that most computers currently support USB 3, but you can expect to see computers starting to gain USB 4 support from 2022 onwards.
The good news is that USB 4 is backwards compatible with computers that support USB 3 and Thunderbolt. Buying a USB 4 accessory now means you are buying a future proofed product that will also work with new computers that are released in the next few years.
Note that USB 4 accessories are limited to USB 3 capabilities when used with current or older computers that only support USB 3. The effect of this means that when this device is used with USB 3 computers USB port speeds and video resolutions achievable may not reach the maximum speeds and resolutions that the device is capable of. Guidance on achievable resolutions can be found below.
| Host Type | Max Resolution/Refresh Rate | |
| Without DSC* | With DSC* | |
| USB-C 3.x DP1.2 alt mode hosts | 4K 30Hz |
|
| USB-C 3.x DP1.4 alt mode hosts | 4K 60Hz | 8K 30Hz |
| TB3 DP1.2 alt mode hosts | 4K 30Hz |
|
| TB3 DP1.4 alt mode hosts | 4K 60Hz | 8K 30Hz |
| TB4 DP1.4 alt mode hosts | 8K 30Hz | 8K 60Hz |
| USB 4 hosts | 8K 30Hz | 8K 60Hz |
| Mac Intel hosts | 4K 30 - 60Hz |
|
| Mac first generation M1 hosts | 4K 60Hz |
|
| Mac M1 Pro/Max hosts | 4K 60Hz |
|
DSC: Display Stream Compression
The device supports USB PD 2.0 and 3.0 power adapters up to 100W. Note that the device can reserve up to 15W from power adapters to power itself and peripheral devices connected to the ports on the hub so it is best to use a USB PD power adapter that is at least 15W larger than the power adapter that was supplied with the computer.
The maximum Wattage that this hub can provide to charge a computer is 85W (100W power adapter minus 15W reserved by the hub). This is sufficient for most laptops, but a few larger high performance laptops may slow charge or not be able to charge through this device.
If the computer shows a message indicating that it is not receiving enough power from the device, increase the size (Wattage) of the connected power adapter or connect the power adapter directly to the computer.
| Host Type | Max Resolution/Refresh Rate | |
| Without DSC* | With DSC* | |
| USB-C 3.x DP1.2 alt mode hosts | 4K 30Hz |
|
| USB-C 3.x DP1.4 alt mode hosts | 4K 60Hz | 8K 30Hz |
| TB3 DP1.2 alt mode hosts | 4K 30Hz |
|
| TB3 DP1.4 alt mode hosts | 4K 60Hz | 8K 30Hz |
| TB4 DP1.4 alt mode hosts | 8K 30Hz | 8K 60Hz |
| USB 4 hosts | 8K 30Hz | 8K 60Hz |
| Mac Intel hosts | 4K 30 - 60Hz |
|
| Mac first generation M1 hosts | 4K 60Hz |
|
| Mac M1 Pro/Max hosts | 4K 60Hz |
|
* DSC: Display Stream Compression
