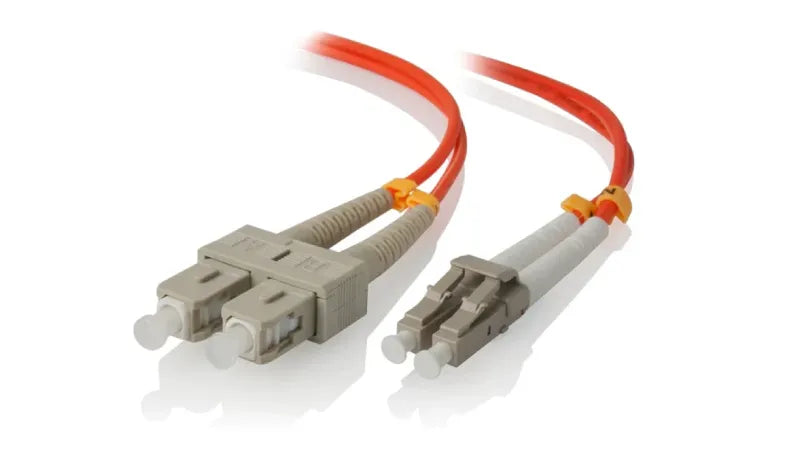

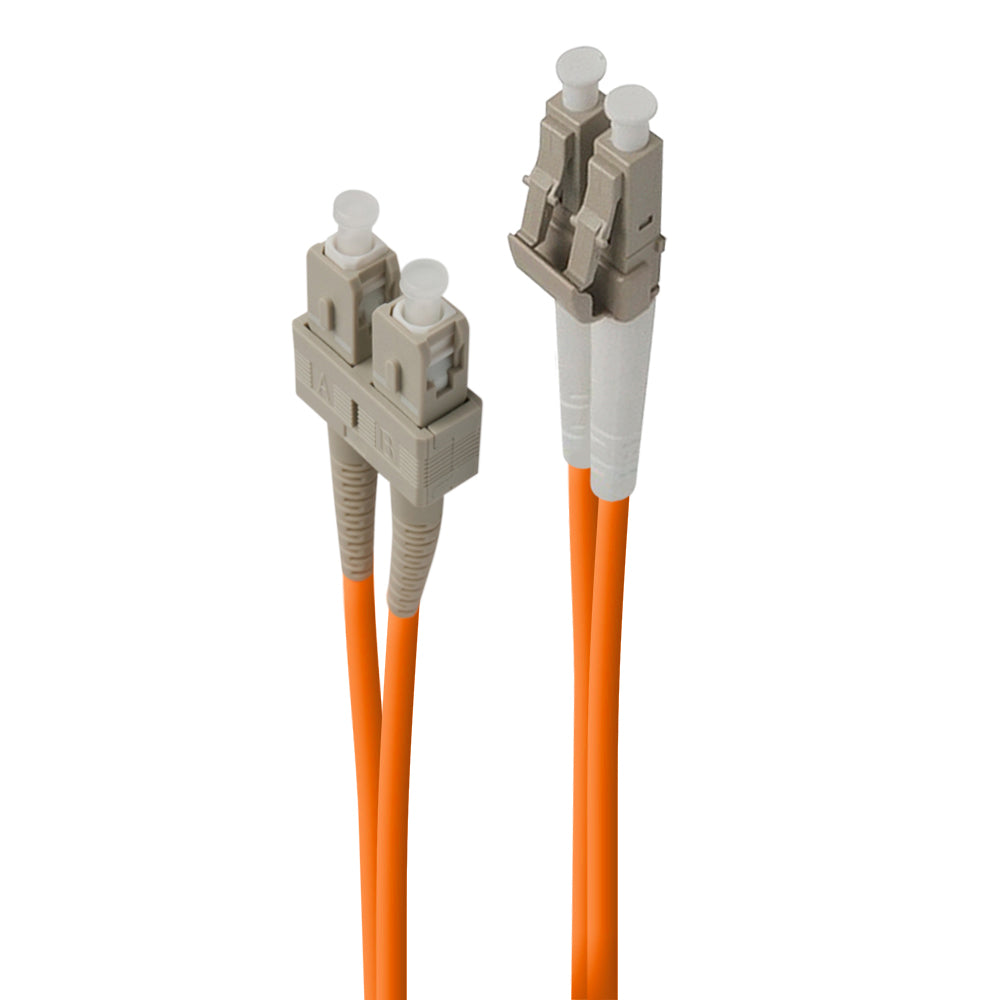

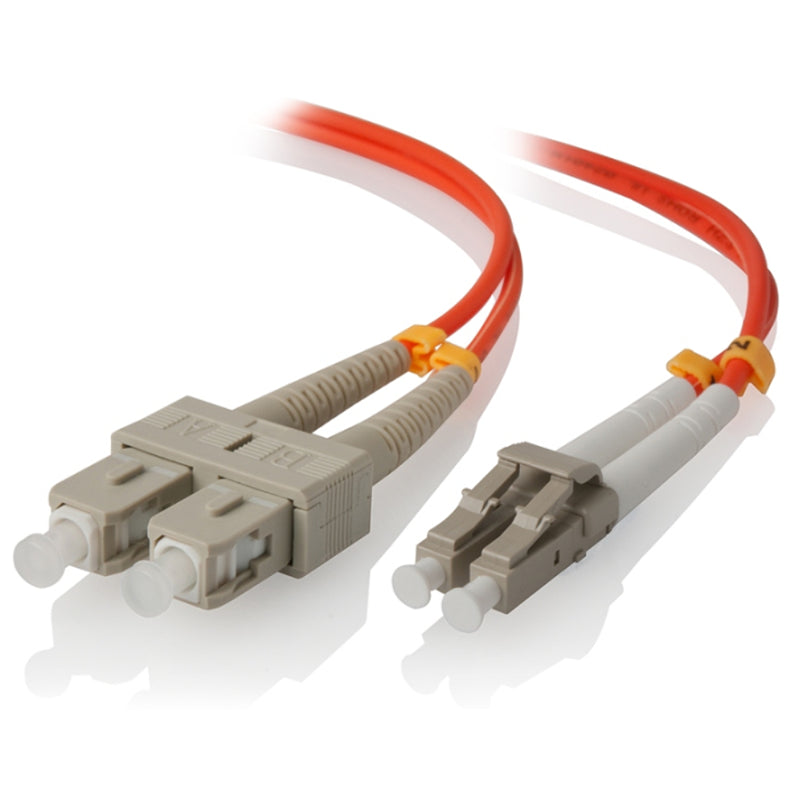

LC-SC Multi Mode Duplex LSZH Fibre Cable 62.5/125 OM1
LC-SC Multi Mode Duplex LSZH Fibre Cable 62.5/125 OM1

LC-SC Multi Mode Duplex LSZH Fibre Cable 62.5/125 OM1

SKU: LCSC-01-OM1
Length: 1m
Sale price$11.99 Regular price$15.99
Sold out
2-Year Limited Warranty

Based in Canada

14-Day Returns

14 Days Money Back

Secure Checkout

Expert Support
media

PRODUCT FEATURE

The Multi Mode OM1 cables are designed to support Gigabit Fibre & ethernet channel, the cables are capable of supporting 1Gigabit applications upto over 25m length. These Fibre Cables are constructed with the high quality components such as genuine Corning Inficore 3 glass and high grade connectors with ceramic ferrules to ensure the maximum performance accuracy and durability. The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports.

* Multi Mode OM1 fibre optic cable
* Available in various lengths starting from 1m to 20m
* Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire
* 100% optically tested and provided with test reports

Specifications
  • SKU: LCSC-XX-OM1
  • Connector Type: LC, SC
  • Wavelengths: 62.5µm (OM1)/125 µm* Attenuation: At 850 nm: <3.5 dB per km / At 1300 nm: <1.0 dB per km
  • Insertion loss: <0.2 dB per 300 m @ 850 nm or 1300 nm
  • Fiber: Glass
  • Number of fibers: 2
  • Jacket: LSZH (Low Smoke Zero Halogen)
  • Cable outer diameter: 3mm +/-0.2mm
  • Safety: ETL/c-ETL
