• Part No.: FUPCVH

Physical Characteristics

• Product Dimensions: 130 x 55 x 17.5mm (L x W x H excluding cable)
• Cable Length: 230mm
• Colour: Space Grey and Black
• Weight (product): 88g approx
• Materials: Aluminium and ABS

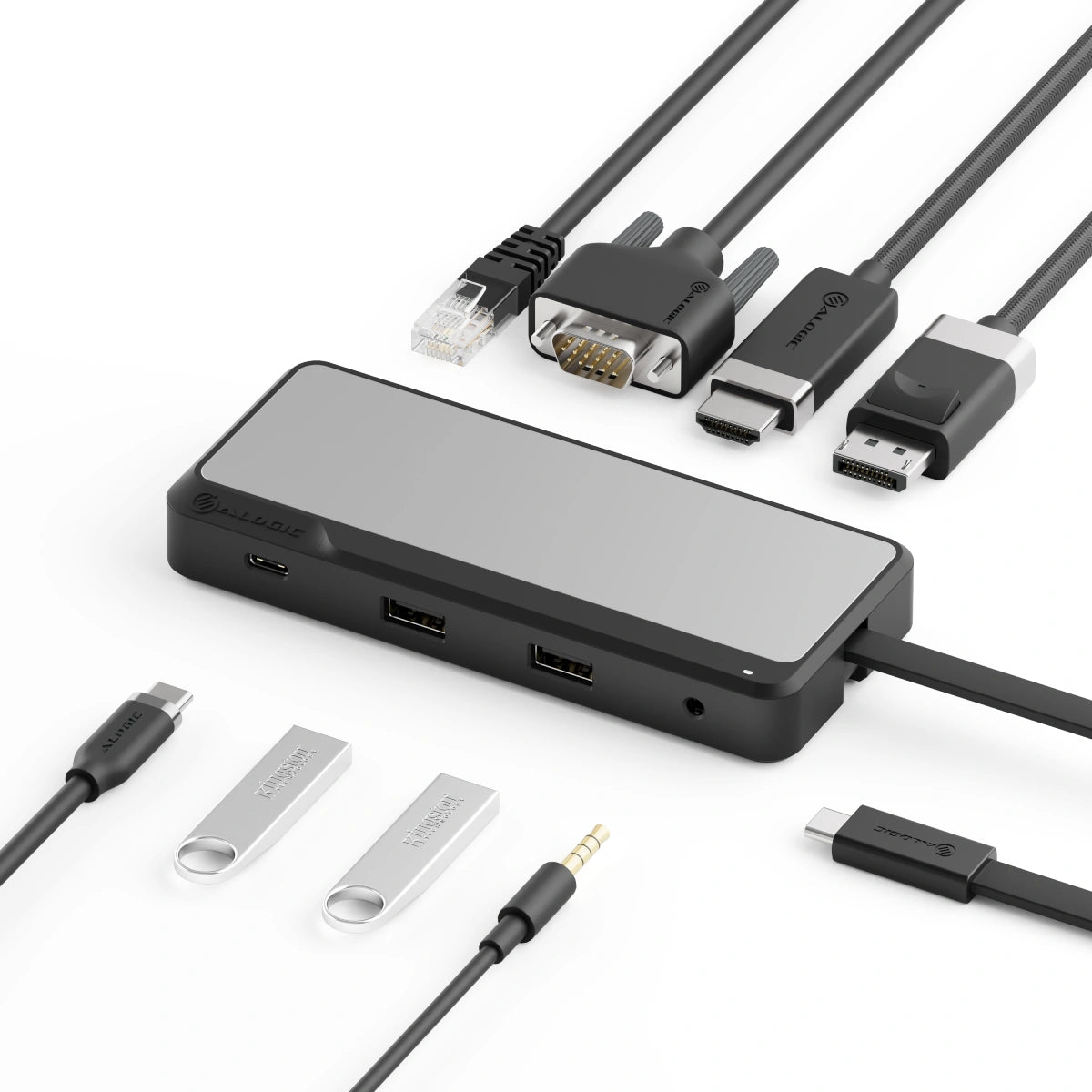

• Input: 1 x Integrated USB-C cable for connection to computer
  1 x USB-C power input; supports USB Power Delivery (USB PD) power sources up to 100W (shared with USB-C video output)

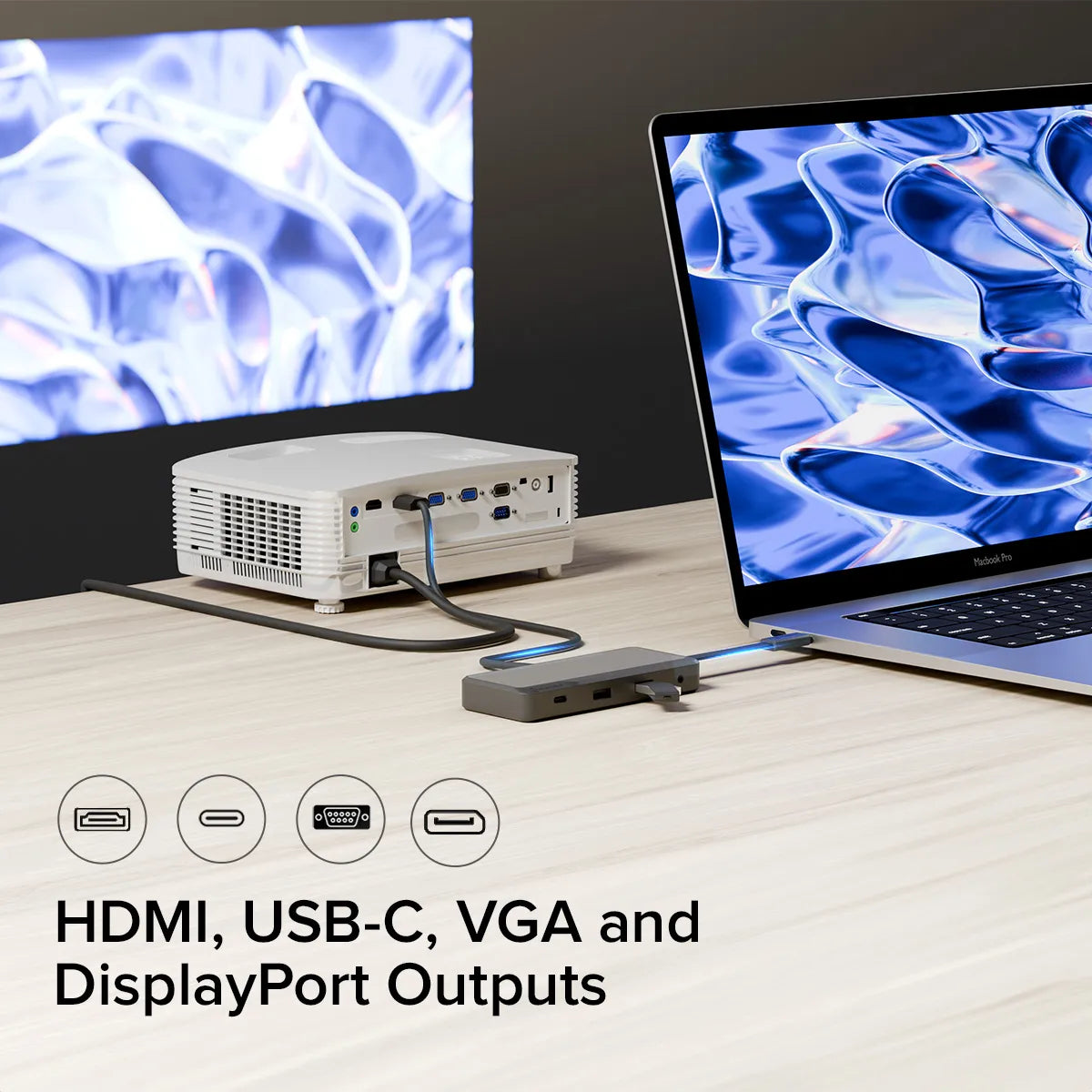

• Output: 1 x HDMI 2.0
  1 x DisplayPort 1.4
  1 x VGA
  1 x USB-C 3.2 Gen 2 10Gbps with DP 1.4 Alt Mode and PDpassthrough
  2 x USB-A 3.2 Gen 2 10Gbps
  1 x 3.5mm Audio

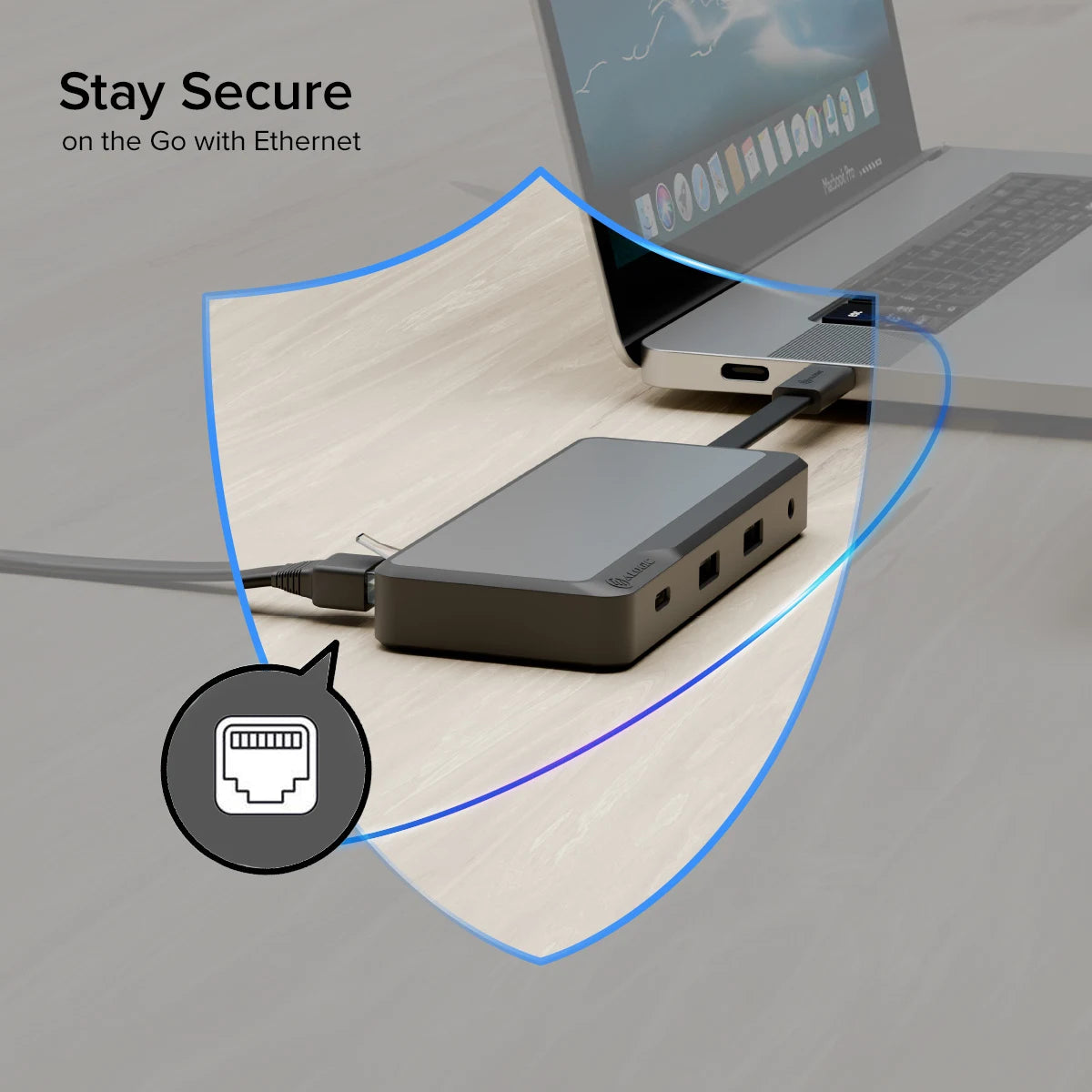

  1 x RJ45 Ethernet 1Gbps

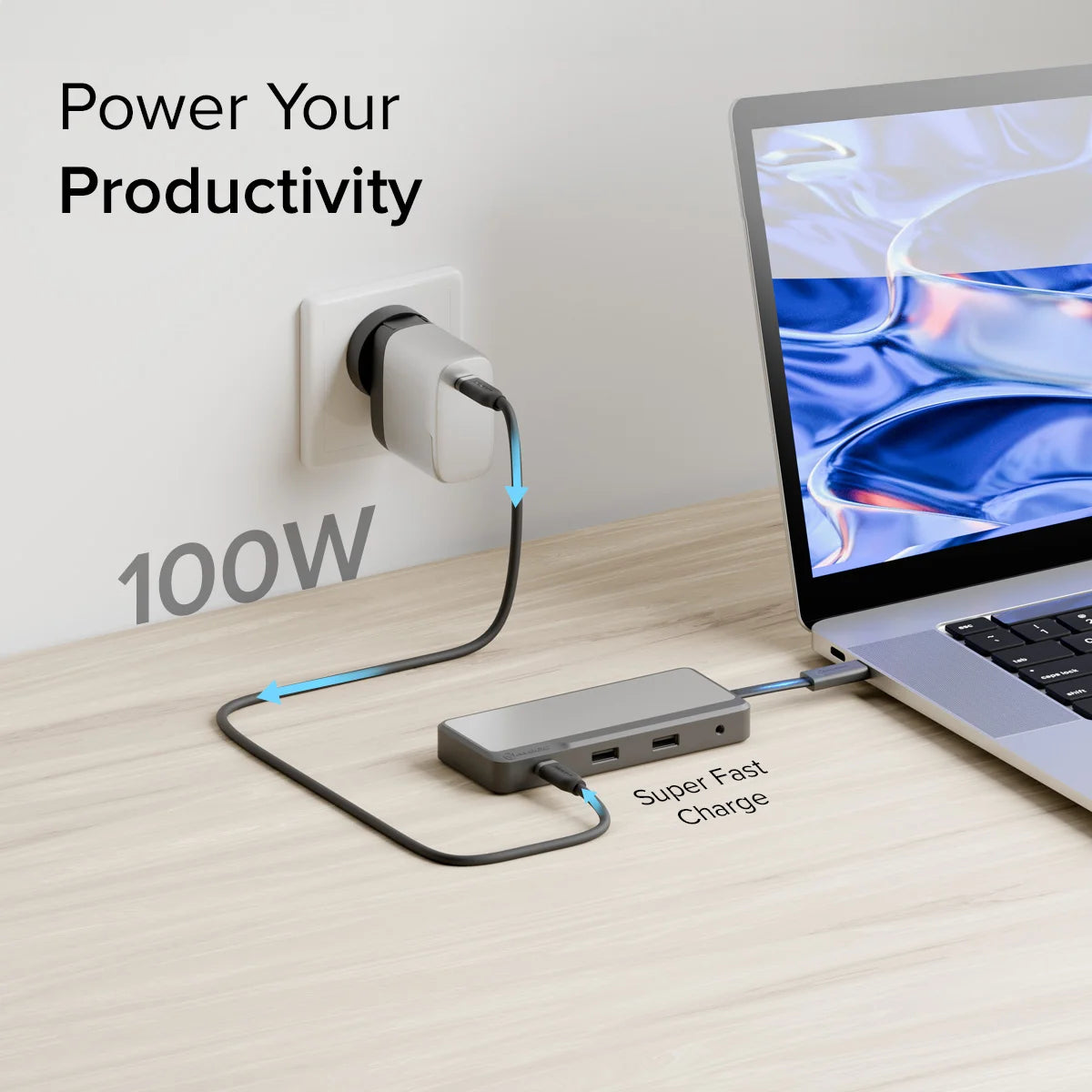

• Power: Can operate powered from the host computer or by connecting a USB-C Power Delivery (USB PD) power adapter (not included).
  The hub will accept up to 100W of power when a suitable USB PD power supply is connected; up to 15W is reserved for use by the hub and connected devices and the remaining power will be made available to charge the computer (up to 85W, dependent on the size of the power supply).
• Video Resolution: HDMI, DisplayPort and USB-C - Up to 4K UHD at 60Hz
  VGA - Up to 1920x1200 WUXGA
  Maximum resolution is dependent on the capability of the host computer and resolution of the connected display.
  See resolution tables at the bottom of this document for full specifications.
• Audio Support: Supports HDMI audio output
  Supports stereo audio out and mic/line in via 3.5mm connector
• Environmental Characteristics: Operating Temperature - 0°C to +35°C
  Operating Humidity - 10% to 85% RH (no condensation)
• Package Includes: 1 x FUPCVH USB-C Universal Video Hub
  1 x User Manual
• Device Compatibility: Compatible with Windows, MacOS, Chrome OS computers.
  USB-C port on the computer that the device is connected to must support DisplayPort Alternate Mode video output for the video ports on the hub to work.
  USB-C port on the computer that the device is connected to must support USB Power Delivery charging for pass through charging from the hub to work.

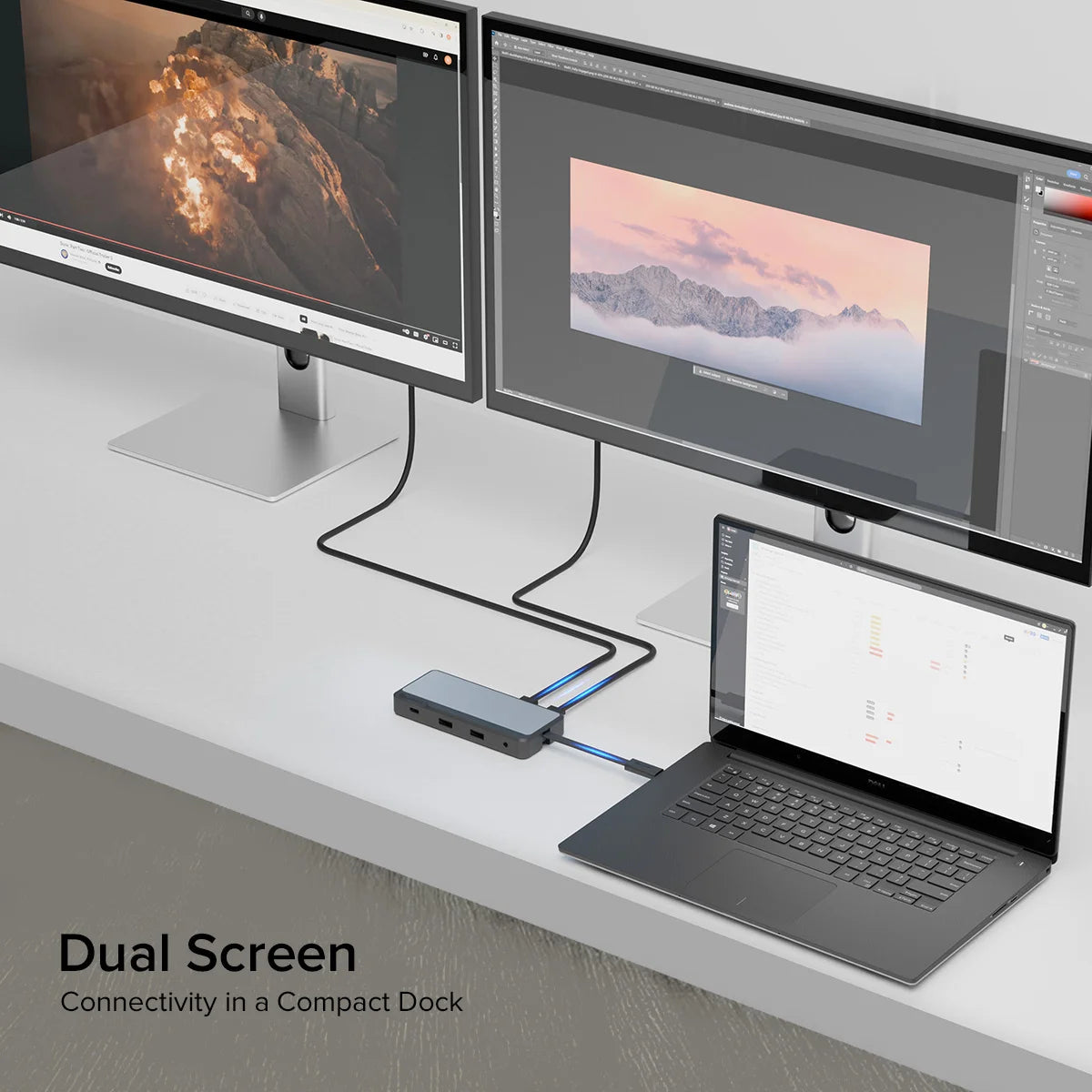

  Windows and some Chrome OS computers are able to show independent video on more than one display connected to this device.
  MacOS devices are not able to show independent video on two or more displays connected to this device. This device is suitable for connecting MacOS devices to a single display.
• Compliance: FCC, CE, UKCA, RoHS
• Warranty: 2 Years
• Barcode (EAN): 9350784027306
