Specifications

Part No.: FUPHDDP1

Physical Characteristics

Product Dimensions: 130 x 55 x 17.5mm (L x W x H excluding cable)
Cable Length: 230mm
Colour: Space Grey and Black
Weight (product): 133g approx
Materials: Aluminium and ABS
Input: 1 x Integrated USB-C cable for connection to computer
1 x USB-C power input; supports USB Power Delivery (USB PD) power sources up to 100W (shared with USB 2.0 data)
Output: 1 x HDMI 2.0
1 x DisplayPort 1.42 x USB-A 3.2 Gen 1 5Gbps
1 x USB-C 3.2 Gen 1 5Gbps
1 x USB-C 2.0 with PD power passthrough
1 x SD Card Reader
1 x Micro SD/TF Card Reader
1 x RJ45 Ethernet 1 Gbps
Power: Device can operate powered from the host computer or by connecting a USB-C Power Delivery (USB PD) power adapter (not included).

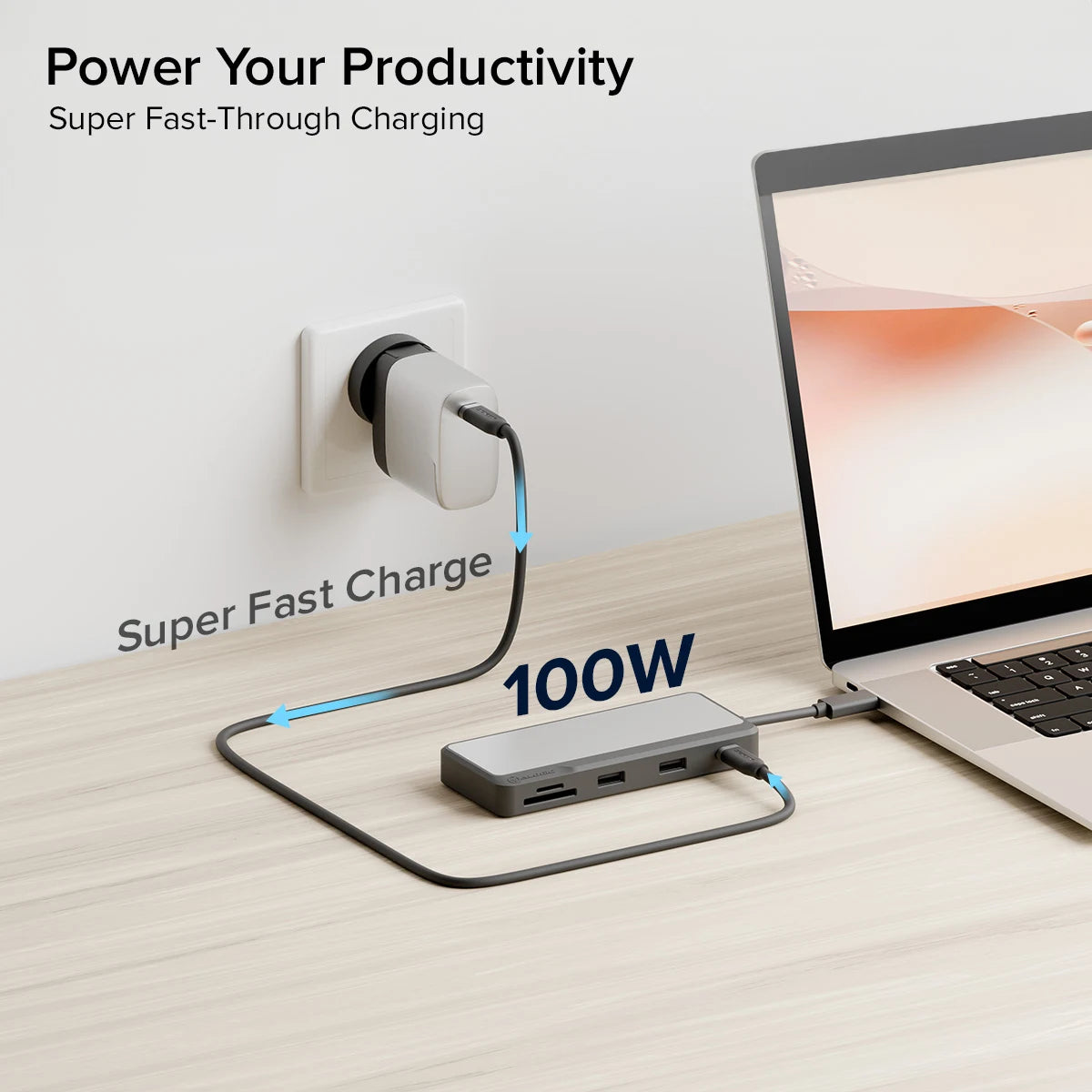

The hub will accept up to 100W of power when a suitable USB PD power supply is connected; up to 15W is reserved for use by the hub and connected devices and the remaining power will be made available to charge the computer (up to 85W, dependent on the size of the power supply).
Video Resolution: Maximum refresh rate is dependent on the capability of the host computer and resolution of the connected display.
See resolution tables at the bottom of this document for full specifications.
Audio Support: Supports HDMI audio output
Environmental Characteristics: Operating Temperature - 0°C to +35°C
Operating Humidity - 10% to 85% RH (no condensation)
Package Includes: 1 x FUPHDDP1 USB-C Dual Display Dock
1 x User Manual
Device Compatibility: Compatible with Windows, MacOS, Chrome OS computers.
USB-C port on the computer that the device is connected to must support DisplayPort Alternate Mode video output for the video port on the dock to work.
USB-C port on the computer that the device is connected to must support USB Power Delivery charging for passthrough charging from the dock to work.
Windows and some Chrome OS computers are able to show independent video on two displays connected to this device.
MacOS devices are not able to show independent video on two or more displays connected to this device. This device is suitable for connecting MacOS devices to a single display.
Compliance: FCC, CE, UKCA, RoHS
Warranty: 2 Years
Barcode (EAN): 9350784027337

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

Fusion Pro AXIS USB-C Dual Display Dock

Name: Fusion Pro AXIS USB-C Dual Display Dock
Brand: ALOGIC CANADA
SKU: FUPHDDP1
Price: 149.99 CAD
Availability: OutOfStock

SKU: FUPHDDP1

$149.99

$149.99 ~~$0.00~~

Shipping calculated at checkout.

🖥️ Tech Essential Sale | Discount Auto-Applied in CheckOut

FREE SHIPPING
Express Shipping & Free Returns
14 Days Money Back Guarantee

24/7 Customer Support
100% Secure Online Shopping

☀️ Summer Sale

Discount Auto-Applied in CheckOut

Specifications

Part No.: FUPHDDP1

Physical Characteristics

Product Dimensions: 130 x 55 x 17.5mm (L x W x H excluding cable)
Cable Length: 230mm
Colour: Space Grey and Black
Weight (product): 133g approx
Materials: Aluminium and ABS
Input: 1 x Integrated USB-C cable for connection to computer
1 x USB-C power input; supports USB Power Delivery (USB PD) power sources up to 100W (shared with USB 2.0 data)
Output: 1 x HDMI 2.0
1 x DisplayPort 1.42 x USB-A 3.2 Gen 1 5Gbps
1 x USB-C 3.2 Gen 1 5Gbps
1 x USB-C 2.0 with PD power passthrough
1 x SD Card Reader
1 x Micro SD/TF Card Reader
1 x RJ45 Ethernet 1 Gbps
Power: Device can operate powered from the host computer or by connecting a USB-C Power Delivery (USB PD) power adapter (not included).
The hub will accept up to 100W of power when a suitable USB PD power supply is connected; up to 15W is reserved for use by the hub and connected devices and the remaining power will be made available to charge the computer (up to 85W, dependent on the size of the power supply).
Video Resolution: Maximum refresh rate is dependent on the capability of the host computer and resolution of the connected display.
See resolution tables at the bottom of this document for full specifications.
Audio Support: Supports HDMI audio output
Environmental Characteristics: Operating Temperature - 0°C to +35°C
Operating Humidity - 10% to 85% RH (no condensation)
Package Includes: 1 x FUPHDDP1 USB-C Dual Display Dock
1 x User Manual
Device Compatibility: Compatible with Windows, MacOS, Chrome OS computers.
USB-C port on the computer that the device is connected to must support DisplayPort Alternate Mode video output for the video port on the dock to work.
USB-C port on the computer that the device is connected to must support USB Power Delivery charging for passthrough charging from the dock to work.
Windows and some Chrome OS computers are able to show independent video on two displays connected to this device.
MacOS devices are not able to show independent video on two or more displays connected to this device. This device is suitable for connecting MacOS devices to a single display.
Compliance: FCC, CE, UKCA, RoHS
Warranty: 2 Years
Barcode (EAN): 9350784027337

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Fusion Pro AXIS

USB-C Dual Display Dock

Compact 9-in-1 Dock for Portable Connectivity.

Up to 4K Video

Pass-through Charging

Plug & Play Driverless

Shielded Construction

Compact & Portable

Workspaces Made Simple

This dock does the job of a large format desktop dock while doing away with the bulky box and power adapter.

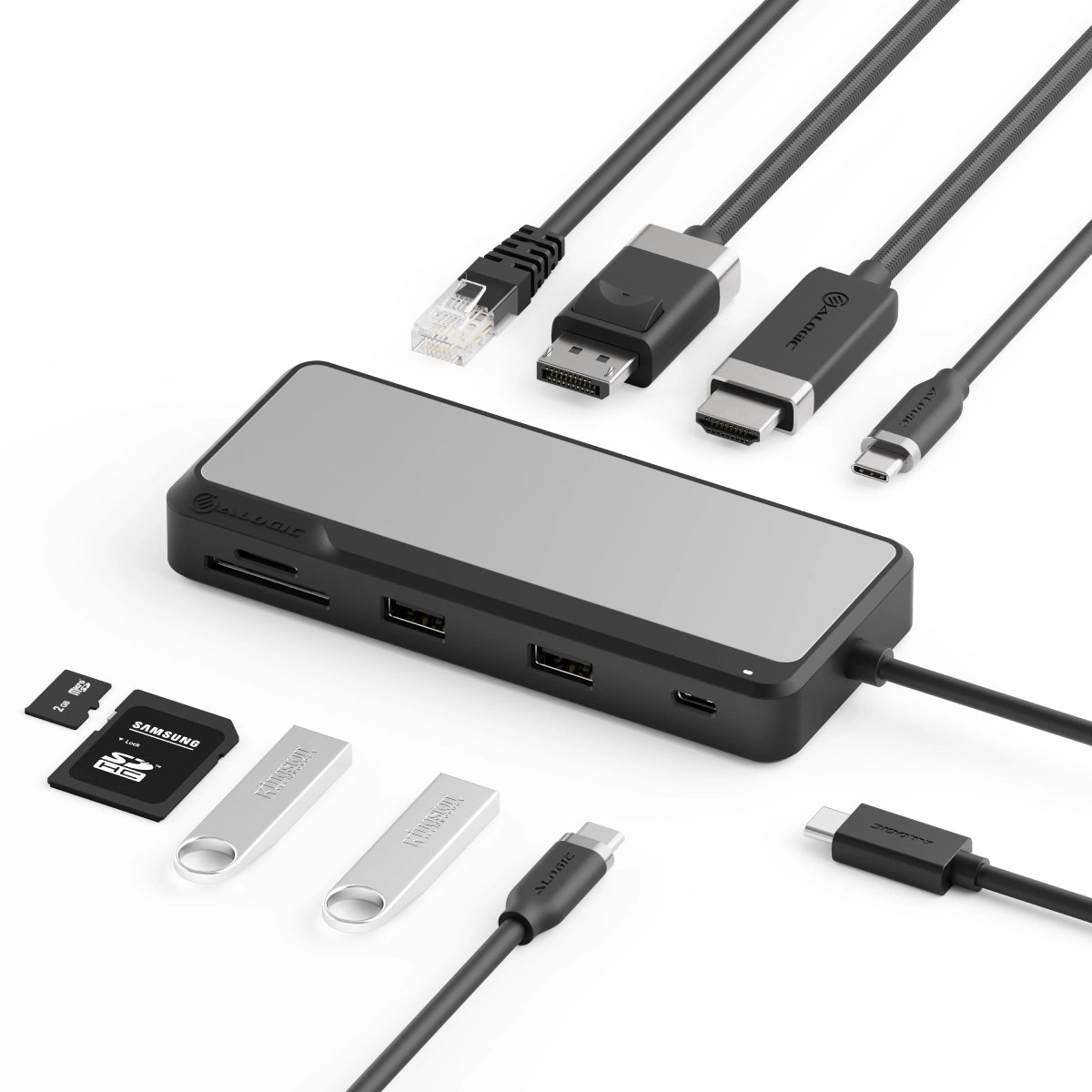

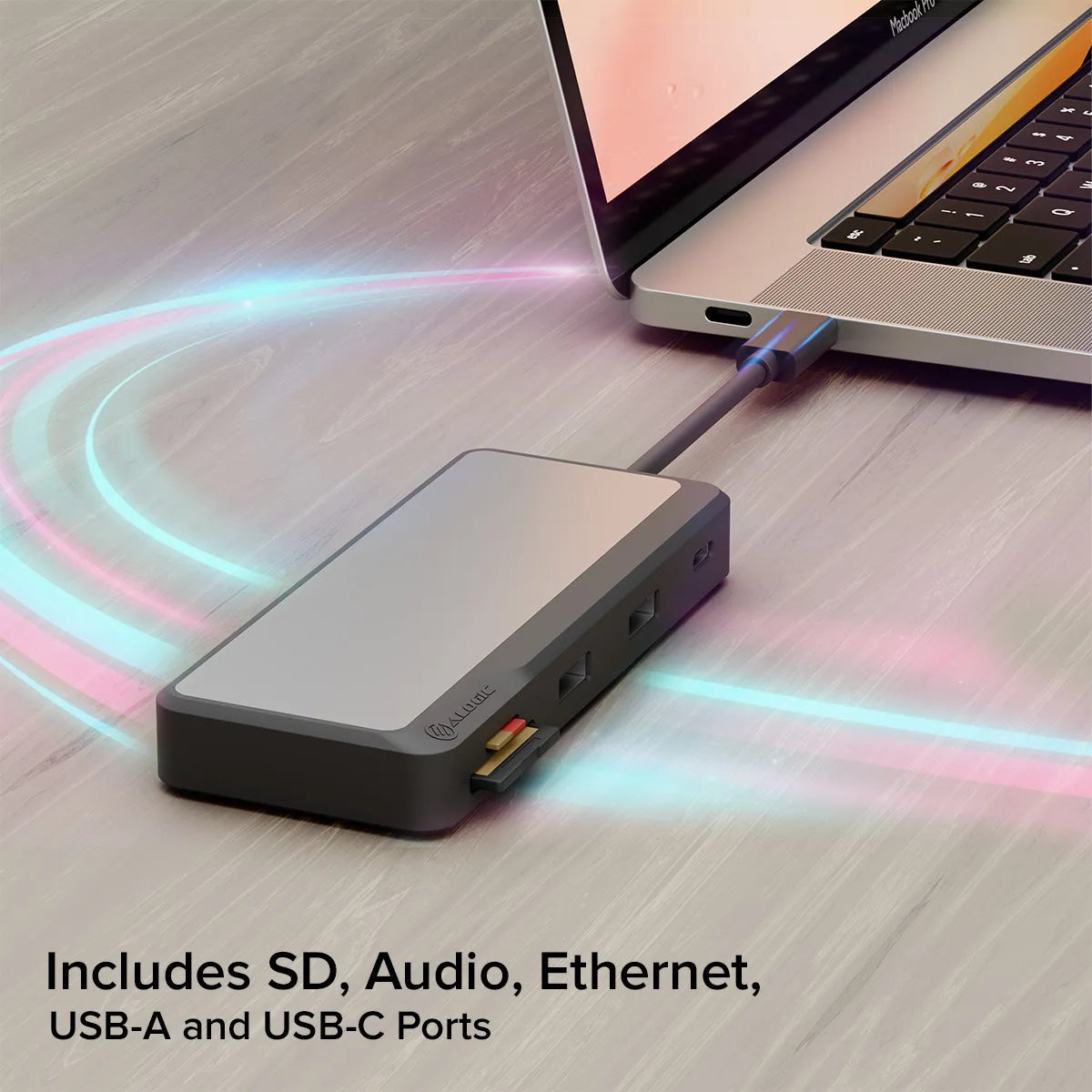

The dock has the ability to connect two monitors, up to four USB peripherals and Gigabit Ethernet. SD and micro SD card readers gives the added flexibility of managing photos and files on memory cards.

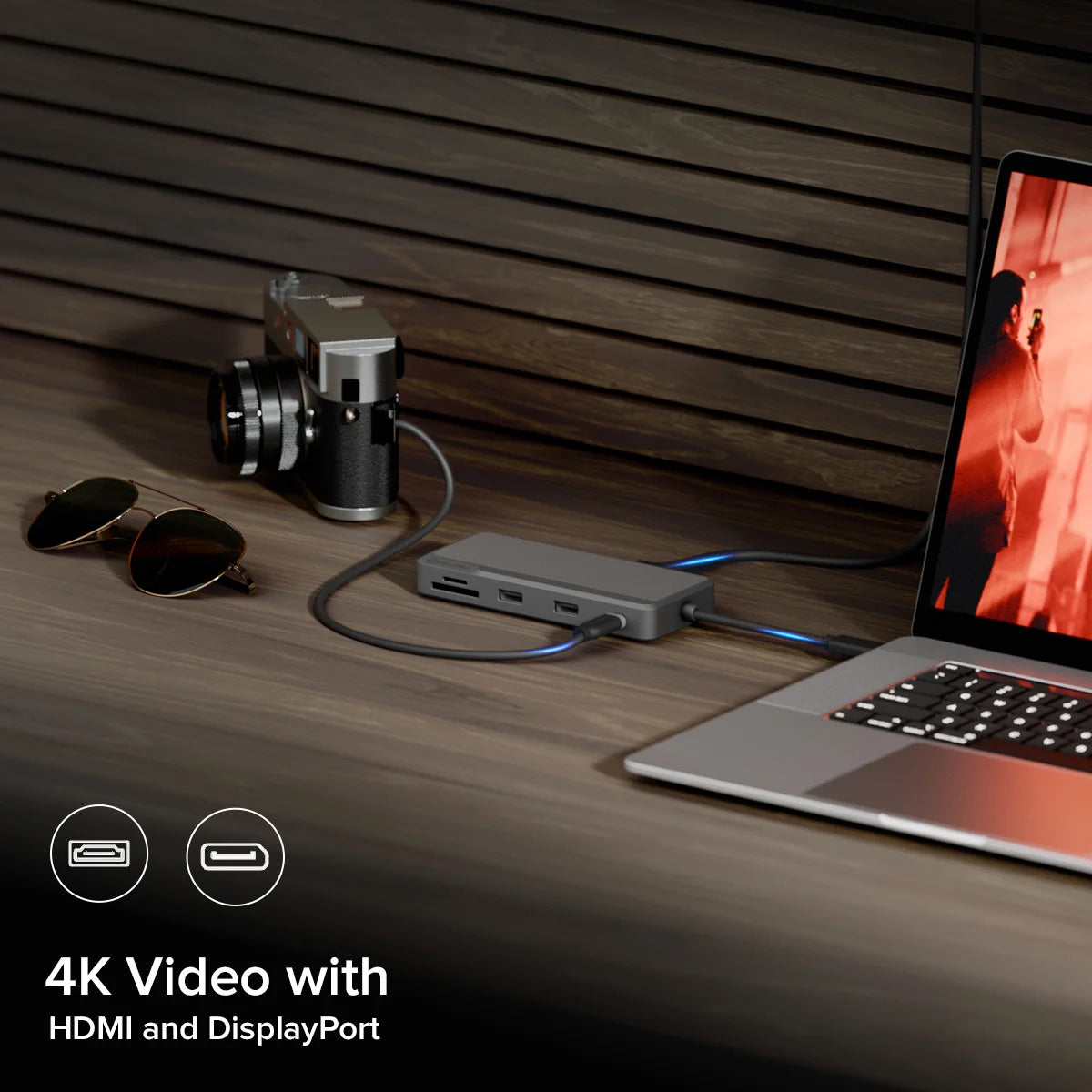

Stunning 4K Video

Small but powerful, the Axis Dock can extend a laptop’s display to two external monitors significantly expanding the computer’s capabilities.

Supporting resolutions up to 4K*, this dock provides vivid high resolution visualization for increased visual fidelity.

SUPPORTS

SINGLE DISPLAY

2+ DISPLAYS

* Video resolutions and refresh rates that can be achieved are dependent on the capabilities of the connected computer and monitor. Check the FAQ’s below for guidance in the resolutions you can expect to achieve with your equipment.

Small and Robust

ALOGIC is redefining docking stations by packing the same features of a traditional large format dock into compact devices that are just as at home on a desk or on the road.

A robust and elegant mix of Aluminium and impact resistant ABS ensure the hub is strong so it can live in a laptop bag while taking up minimum space and without fear of being damaged.

Compact Design

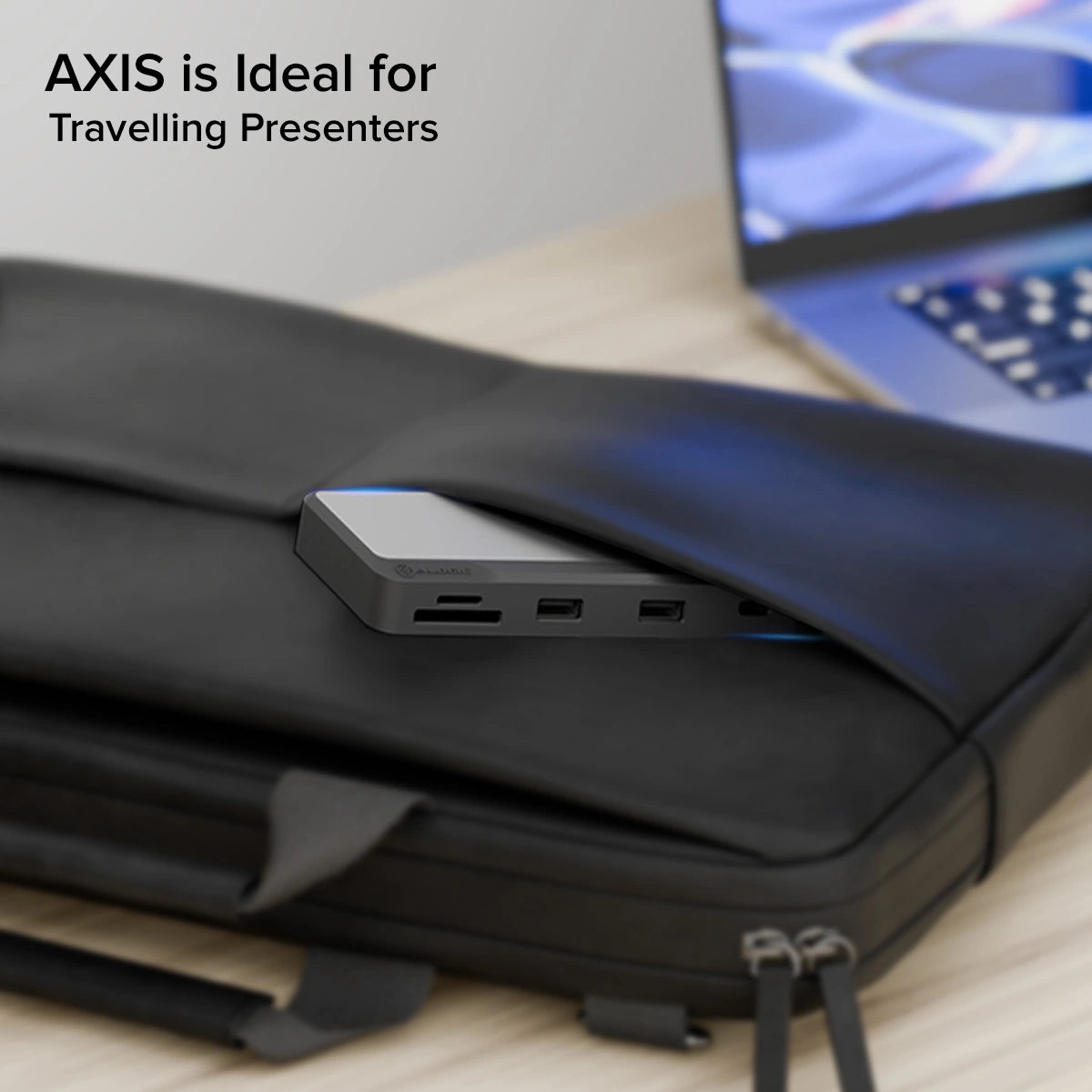

This dock’s compact design is perfect when space is at a premium and makes it a logical choice for mobile users – road warriors, educators, students and professionals who work between the office and home.
